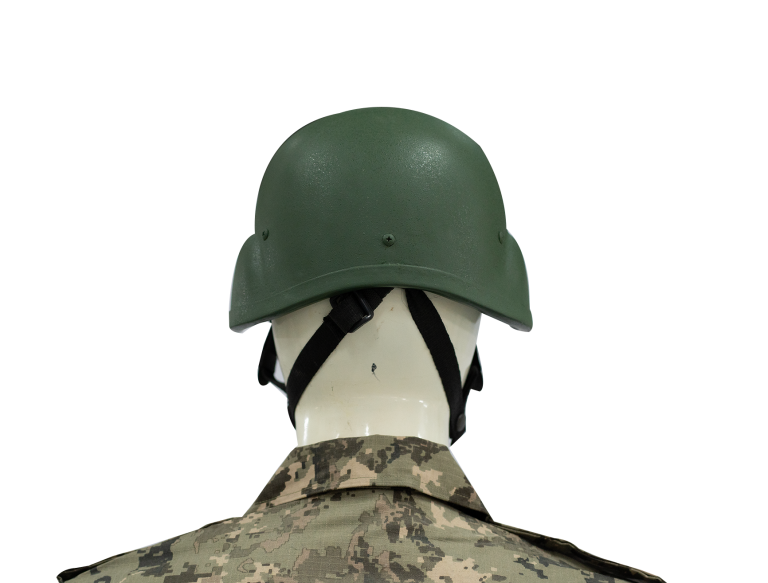

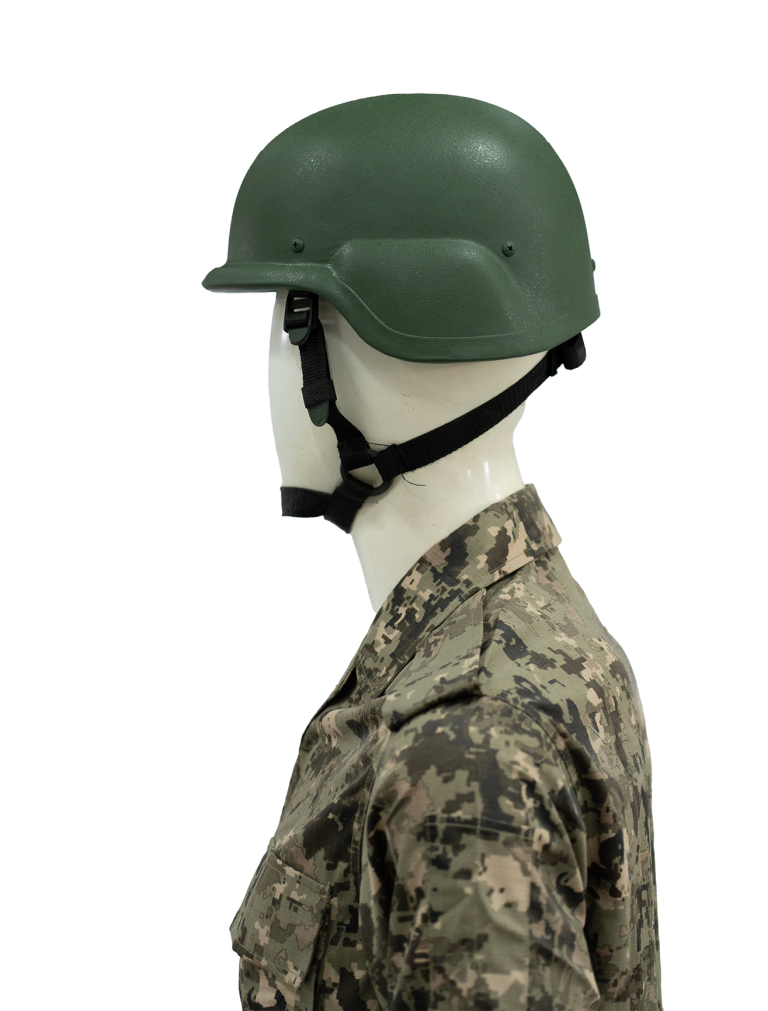

Bullet Proof Helmet

Specifications

  1. Style PASGT (Personal Armor System for Ground Troops) designed in accordance with MIL-H-44099A standard.
  2. Material Should be made of multiple layers of Twaron / Kevlar fabrics pre-impregnated with resin for a strong bond that can survive multiple hits.
  3. Protection
  4. NIJ 0106.01 Level III-A; 9 x 19 mm at 410 +/- 15 m/s
  5. Ballistic Transient Deformation (BTD)

                             (1)         Front & Back; 25.4 mm\

                             (2)         Right, Left & Crown; 16 mm

  1. Additional protection against splinters / fragments acc. To STANAG 2920 17 grain FSP V-50 more than 1965 feet / sec.
  2. Harness System Four point fully adjustable harness system with chin strap made of non-allergic soft material.
  3. Suspension System
  4. Cradle type suspension system should keep the helmet offset from head for better ventilation in hot and humid climate.
  5. The webbing on the harness system should be non-irritating to skin.
  6. Foam cushioned leather pads for energy absorption in case of blunt impact.
  7. Color
  8. Sand Beige Color / Mil Olive Green
  9. Paint should be non-fading, easy to clean and decontaminate.
  10. Size
  11. Circumference of headband

                             (1)         Small: 54.7 cm and below

                             (2)         Medium: 54.8 to 57.5 cm

                             (3)         Large: 57.7 and above

  1. General
  2. Excellent performance, lightweight, multi-hit protection.
  3. Front lower end of helmet should be tapered to protect against entry of rainwater into uniform.
  4. Should allow free use of communication equipment.
  5. Should not interfere with weapon sight, gas mask, hearing protect and free movement of neck and head. Ease of wearing goggles and use of binoculars.
  6. Should not affect the working of magnetic compass.
  7. Should be rugged and strong enough to withstand rough field handling.
  8. Should be compatible with NVD, communication equipment and add on.



  1. Outer Cover
  2. It should be removable / replaceable / washable.
  3. Should be made from 1000 Denier Nylon fabric, FC Bln Camouflage print, PU Coated, water repellent treated on printed side acc. To IAS&C Khi Specs vide letter no. 17712/R&D dated 11 Jul 2009. A test report to this effect from ASID or SGS to be provided.
